Ultrafiltration membrane filtration principle:
The hollow fiber ultrafiltration membrane module adopts advanced internal pressure and external pressure membrane separation technology. It operates under normal temperature and low pressure for separation. It has the advantages of low energy consumption, high filtration accuracy, large water output, and strong anti-fouling ability. It can effectively filter out harmful substances such as bacteria, colloids, suspended solids, rust, and large molecular organic substances in water, and the produced water quality is clean and hygienic.
Internal Pressure Type Ultrafiltration Membrane:

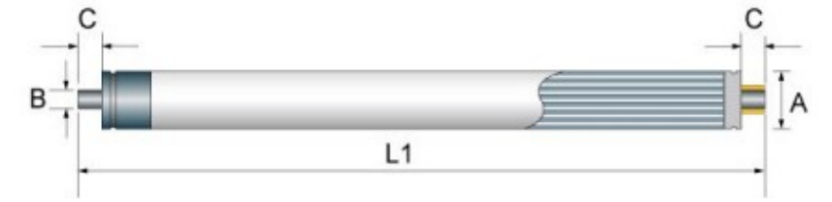

1.Component Dimensions of UF4040/HM4040 (Units: mm)
| Specification | A | B | C | L1 |
| UF4040/HM4040 | 101 | 19 | 27 | 1016 |

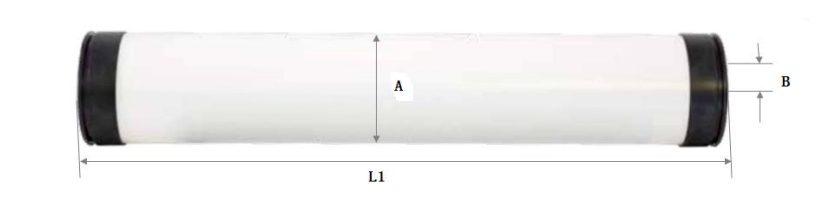

2.Component Dimensions of UF8040/HM8040 (Units: mm)
| Specification | A | B | L1 |
| UF8040/HM8040 | 202 | 28.6 | 1016 |

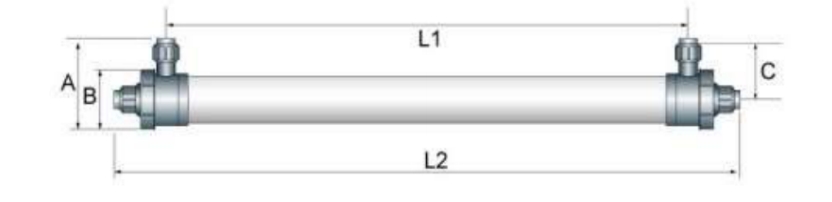

3.Component Dimensions of HM4046/HM90 (Units: mm)
| Specification | A | B | C | L1 | L2 |
| HM4046/HM90 | 167 | 112 | 112 | 966 | 1162 |

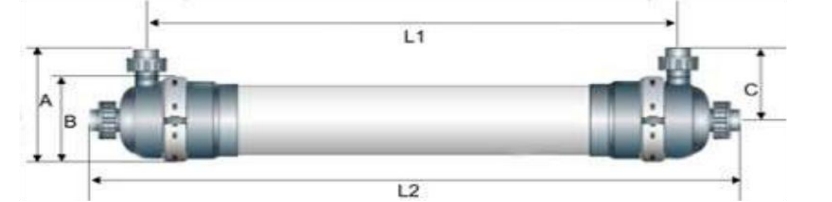

4.Component Dimensions of HM160 (Units: mm)
| Specification | A | B | C | L1 | L2 |
| HM160 | 245 | 195 | 160 | 1132 | 1350 |

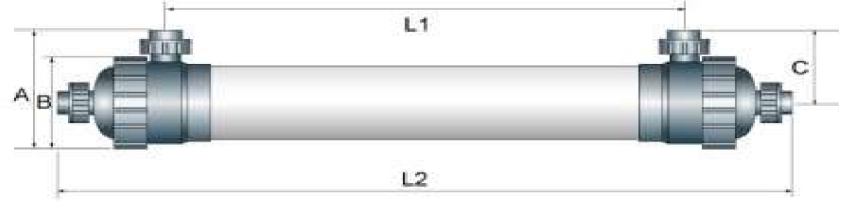

5.Component Dimensions of HM8060/HM200 (Units: mm)
| Specification | A | B | C | L1 | L2 |
| HM8060/HM200 Long Style | 307 | 236 | 183.5 | 1055 | 1465 |
| HM8060/HM200 Short Style | 307 | 236 | 183.5 | 995 | 1405 |

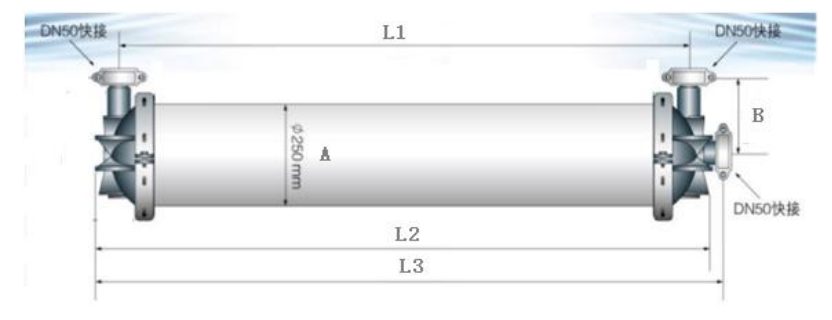

6.Component Dimensions of HM1060/HM250 (Units: mm)
| Specification | A | B | L1 | L2 | L3 |
| HM1060/HM250 | 250 | 173 | 1600 | 1680 | 1713 |
External Pressure Ultrafiltration Membrane:

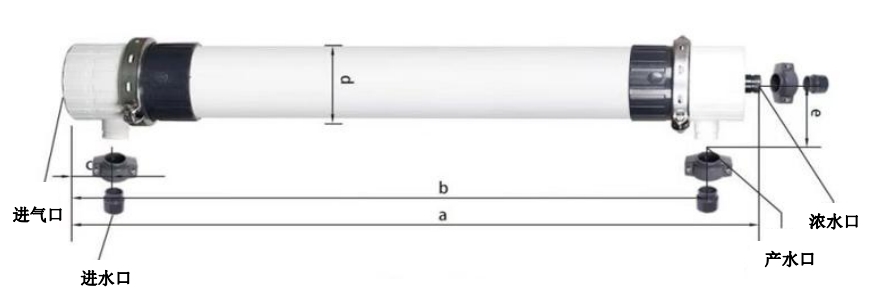

1.Component Dimensions of HM2860/2880 (Units: mm)
| Specification | a | b | c | d | e |
| HM2860 | 1860 | 1725 | 95 | 225 | 180 |
| HM2880 | 2360 | 2225 | 95 | 225 | 180 |
2.Operating Parameters of HM2860/2880 Ultrafiltration Membrane Modules
